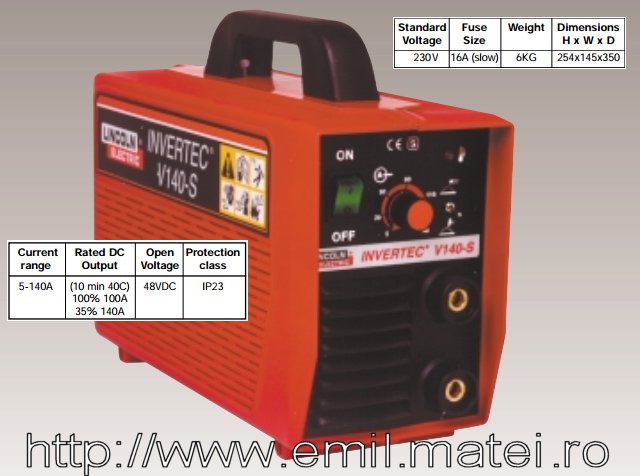

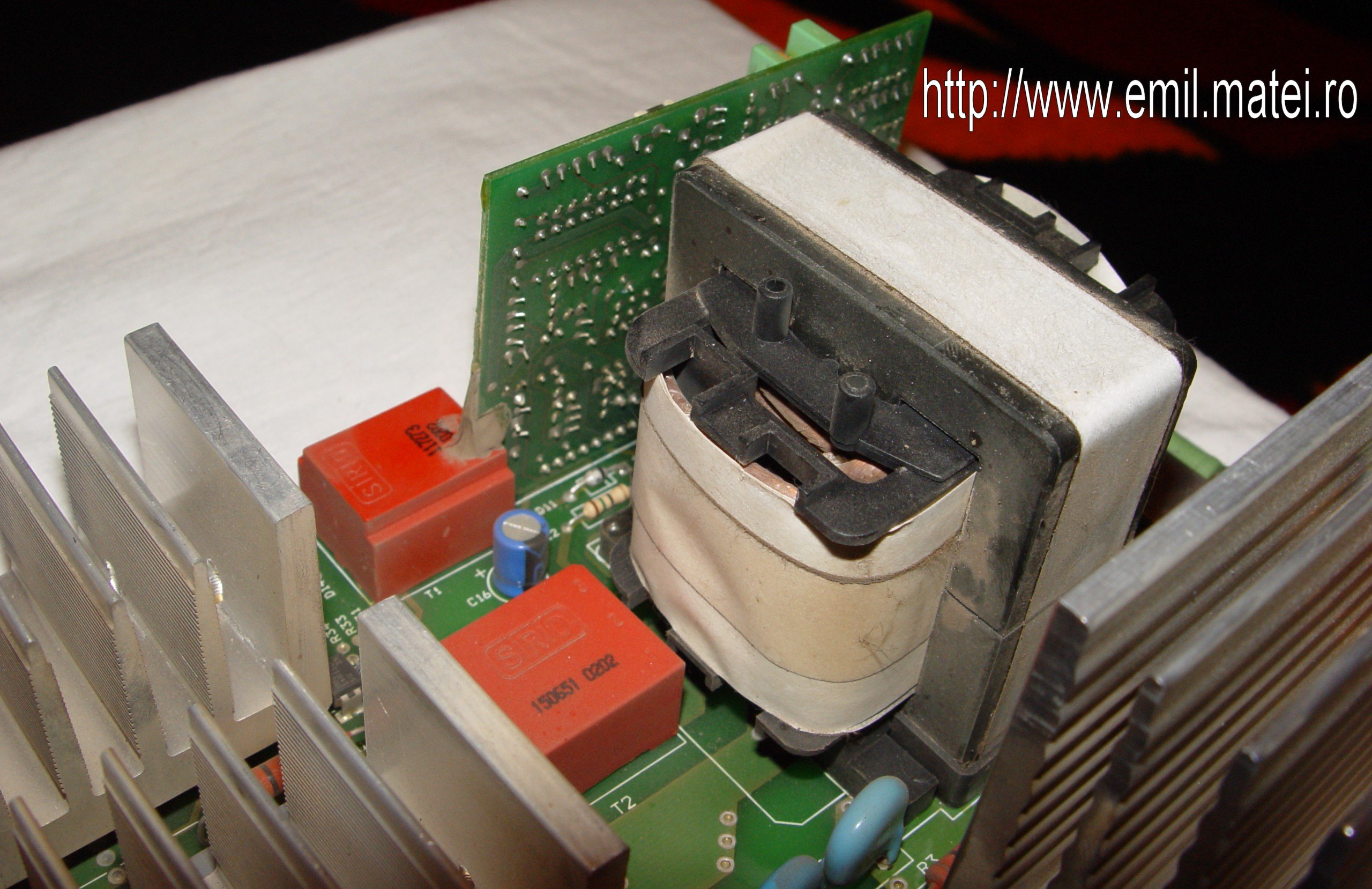

Invertorul de sudare "Lincoln Invertec V140-S"
"Lincoln Invertec V140-S" - welding inverter
"Lincoln Invertec V140-S" - welding inverter
Wiring Diagram Code WF200168, WF200171.

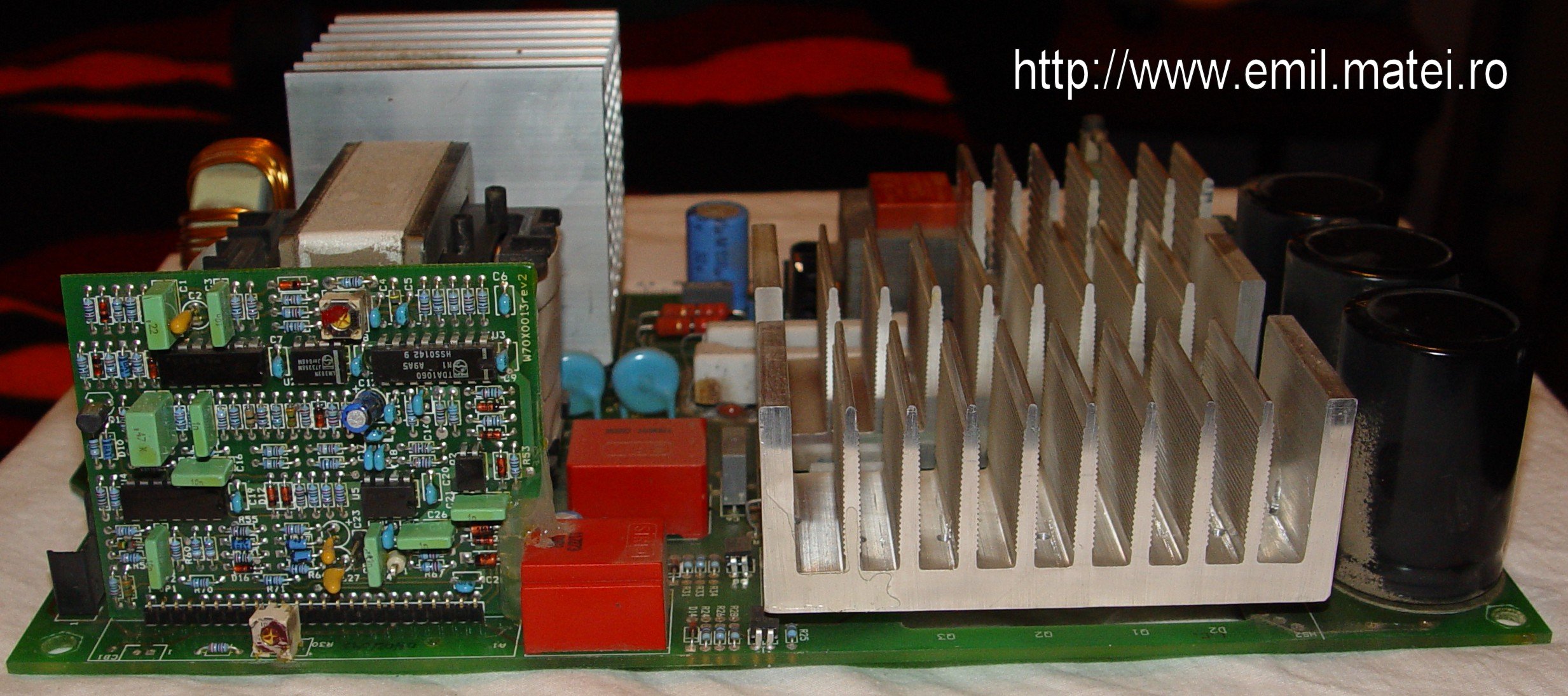

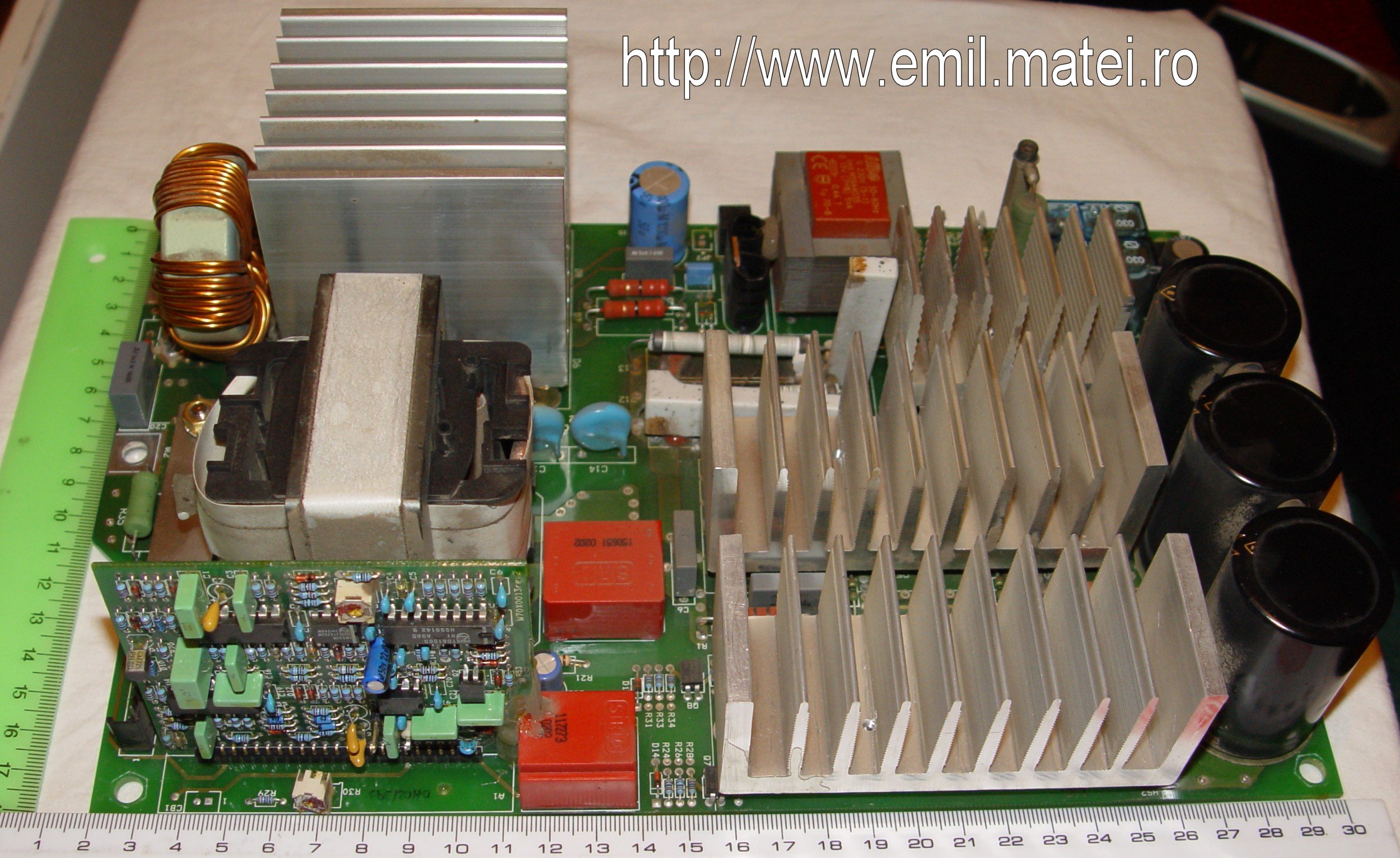

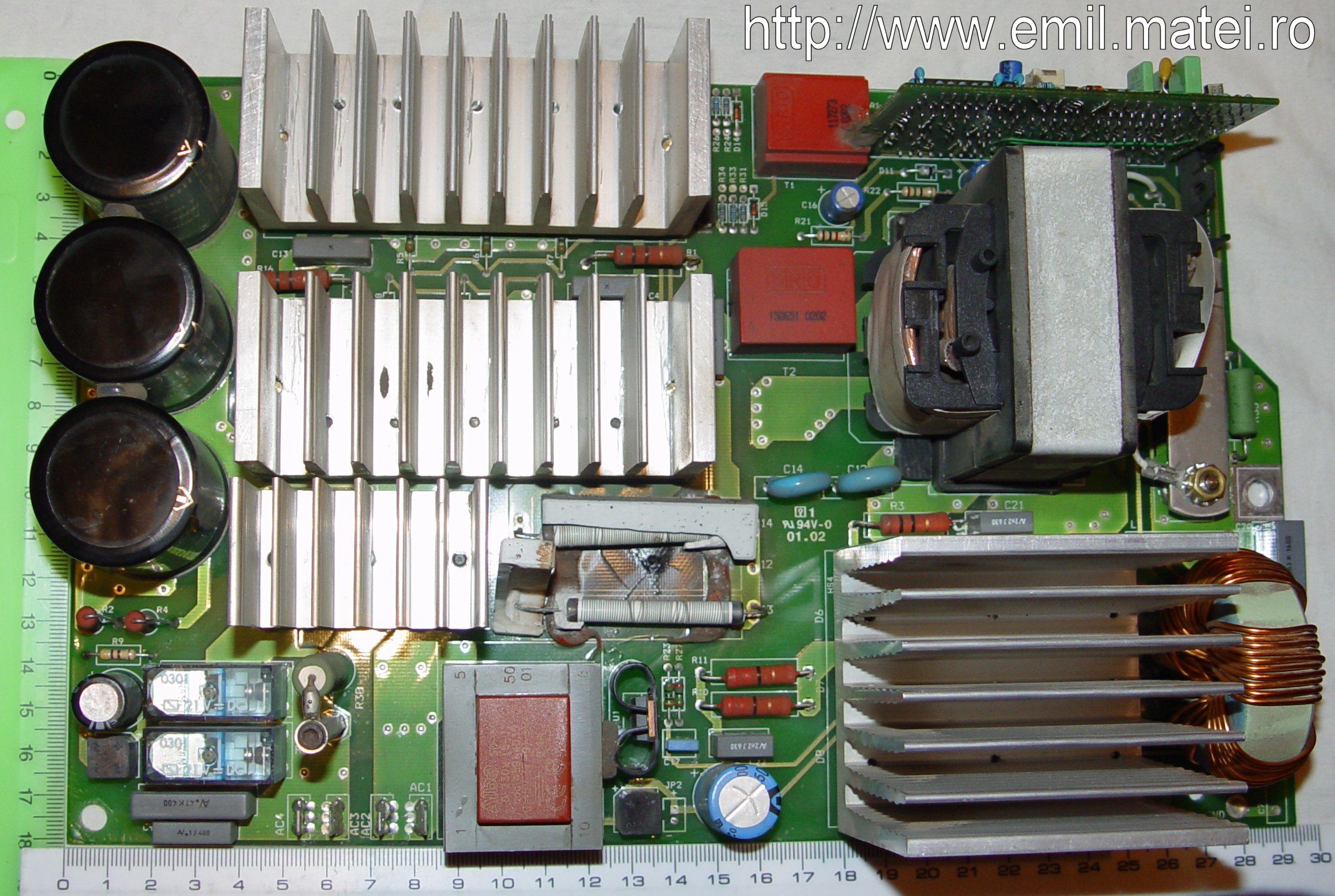

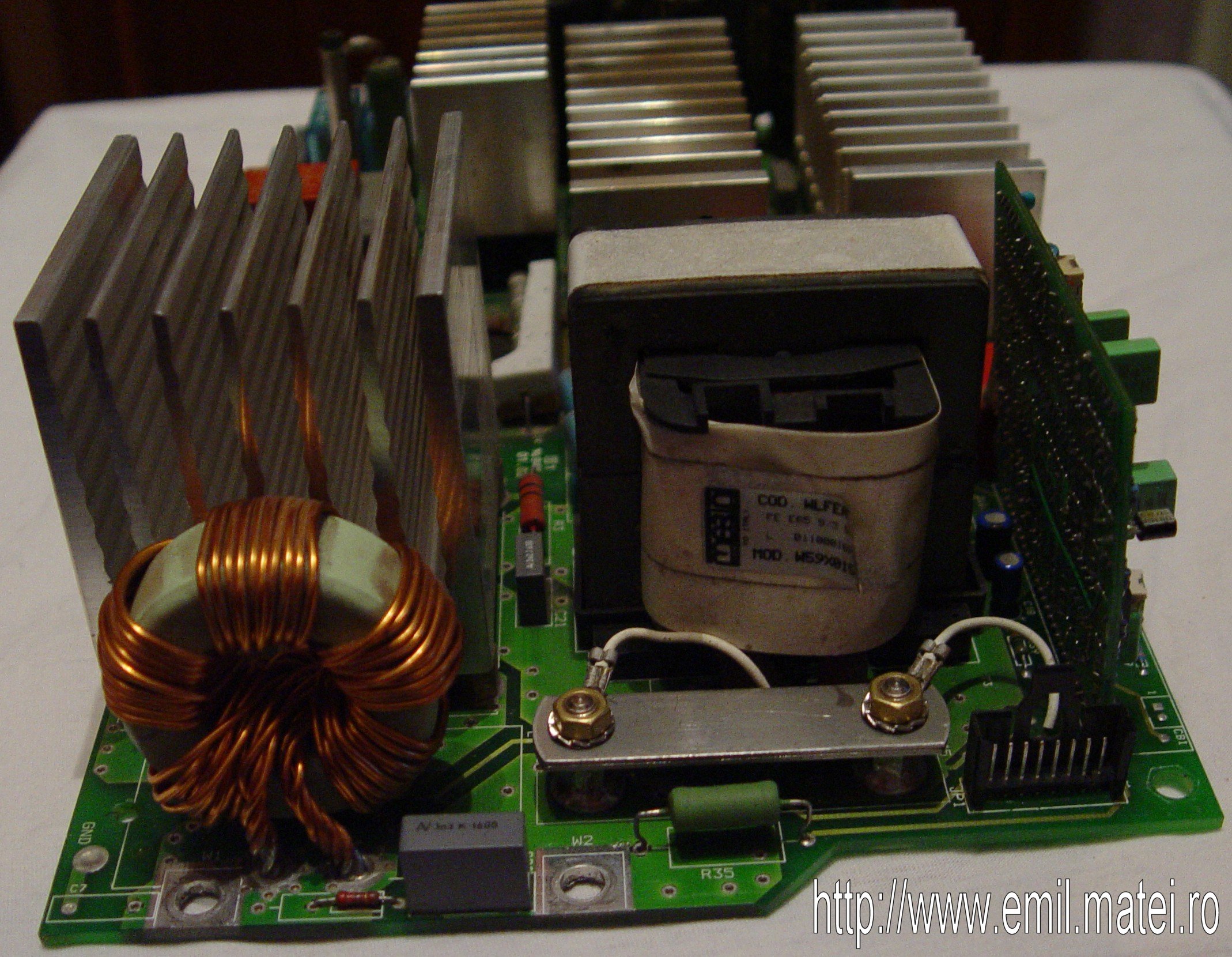

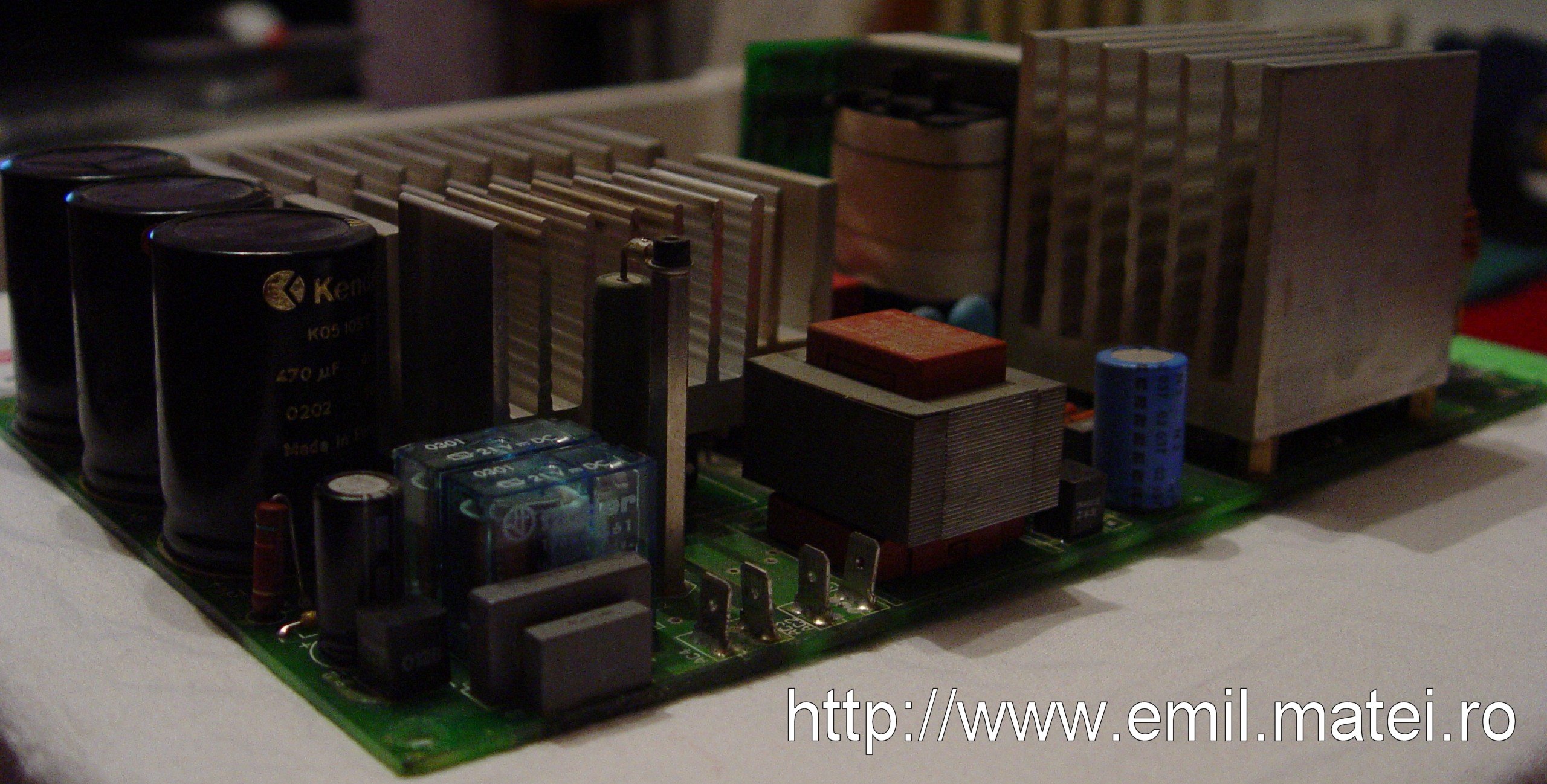

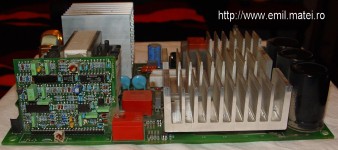

Placa de baza. (Motherboard).
Releveu:

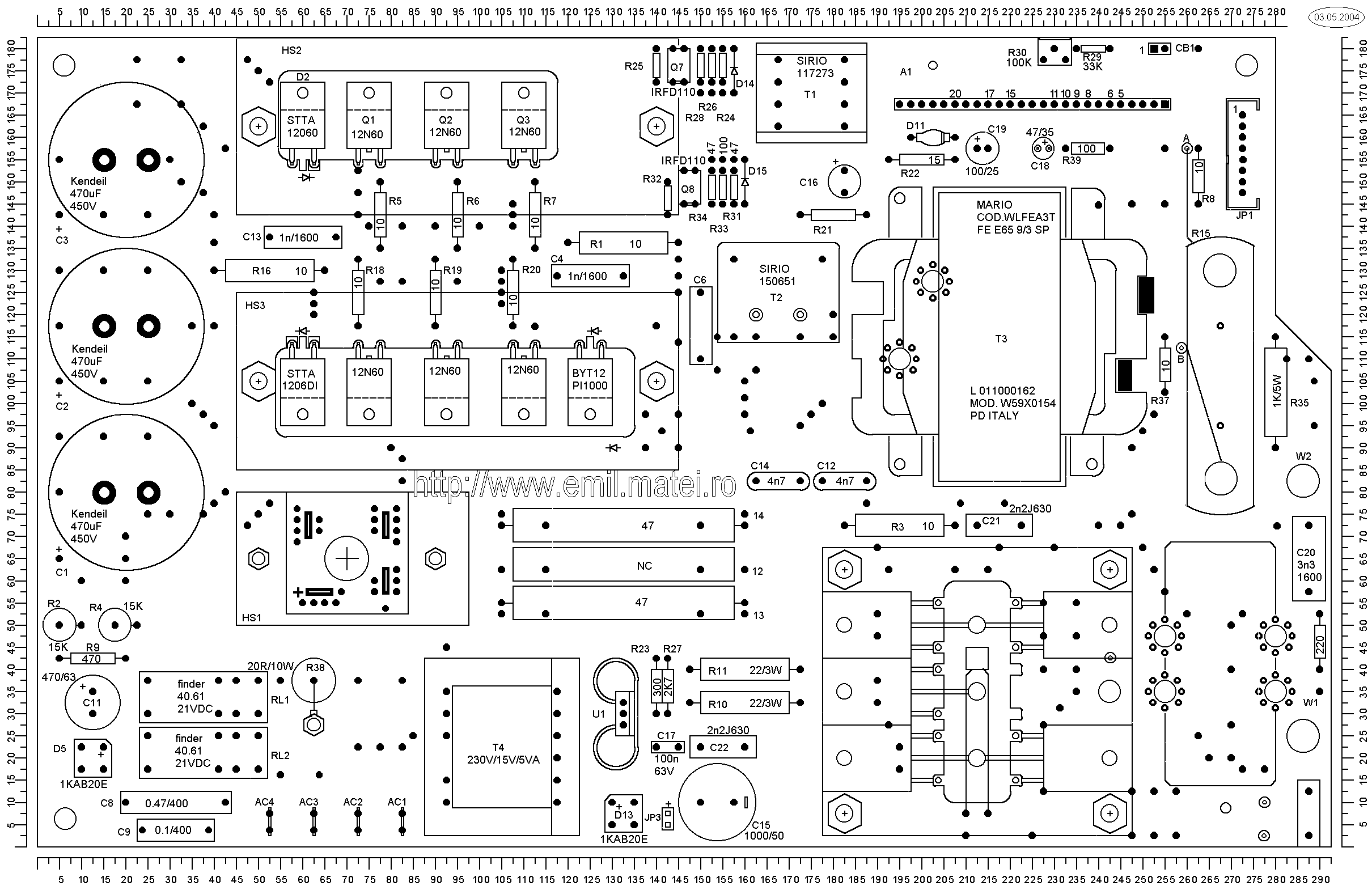

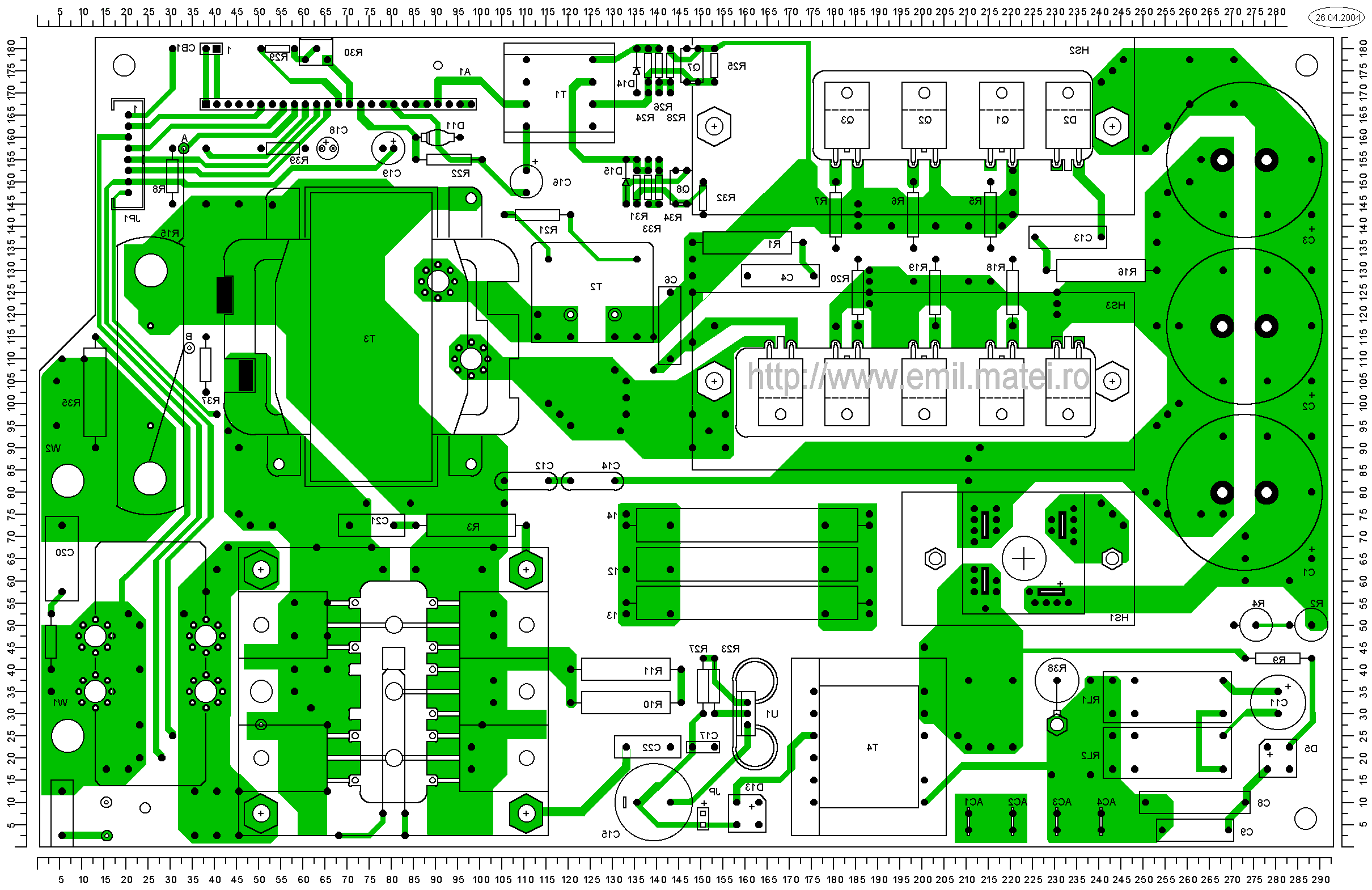

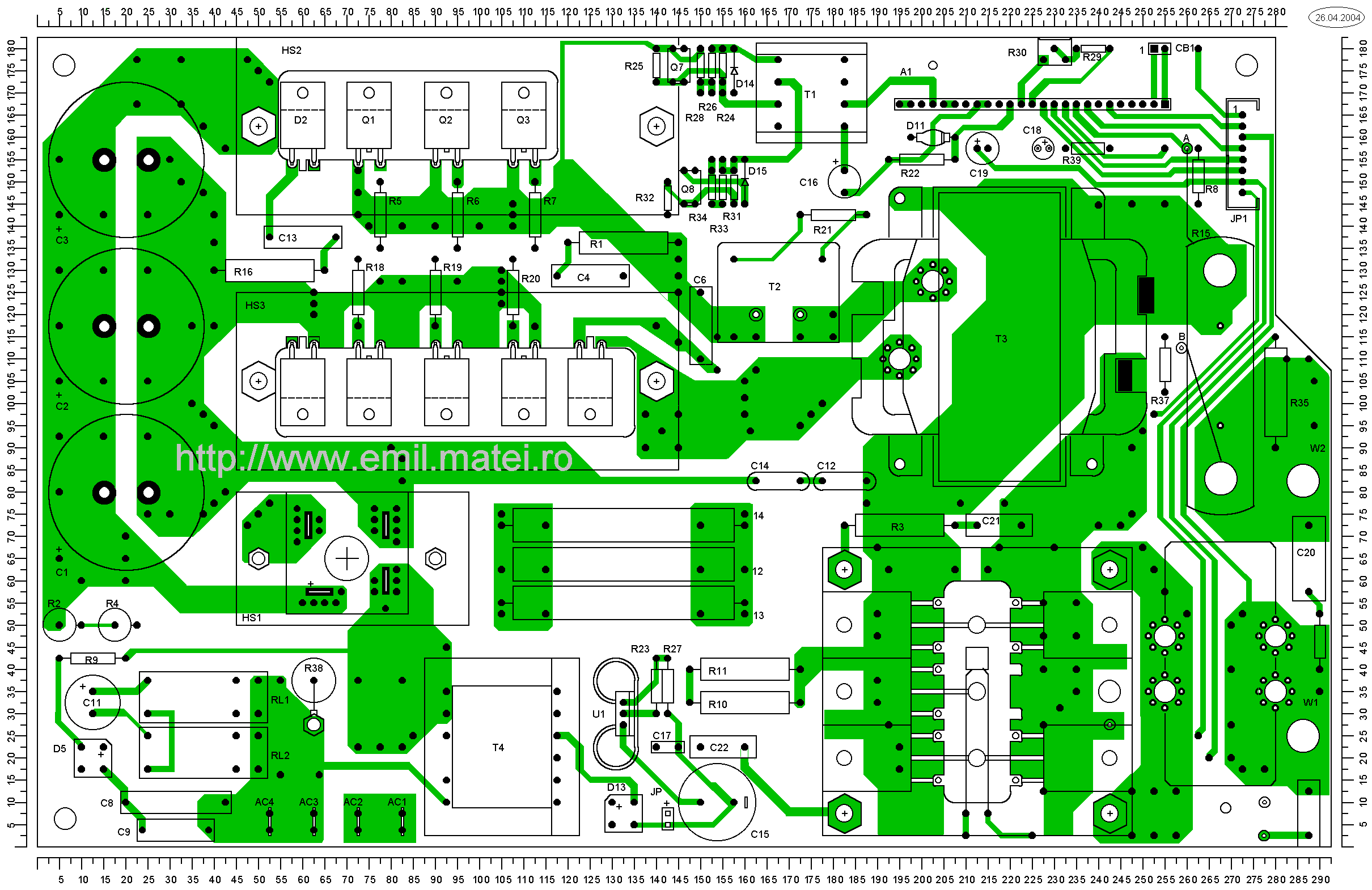

Amplasare componente PCB
PCB Layout

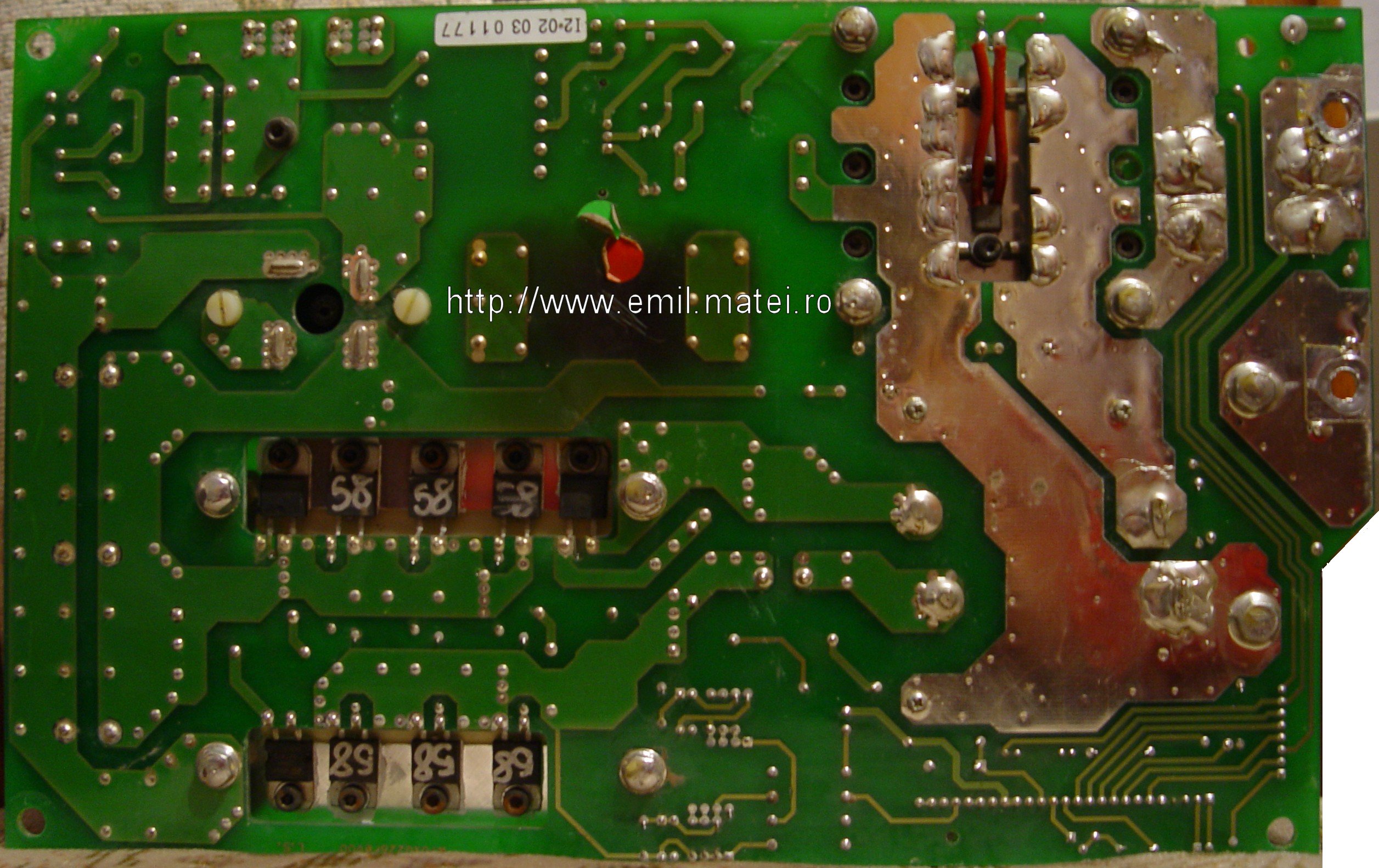

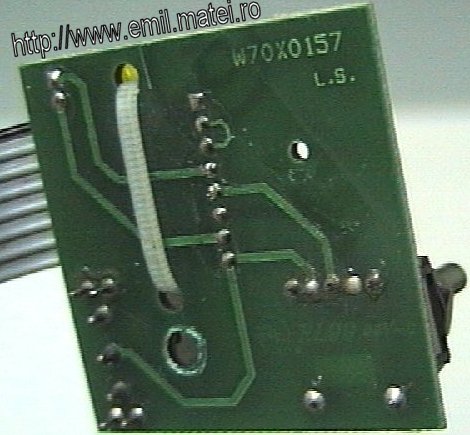

Fata cu lipituri:
Soldering side:

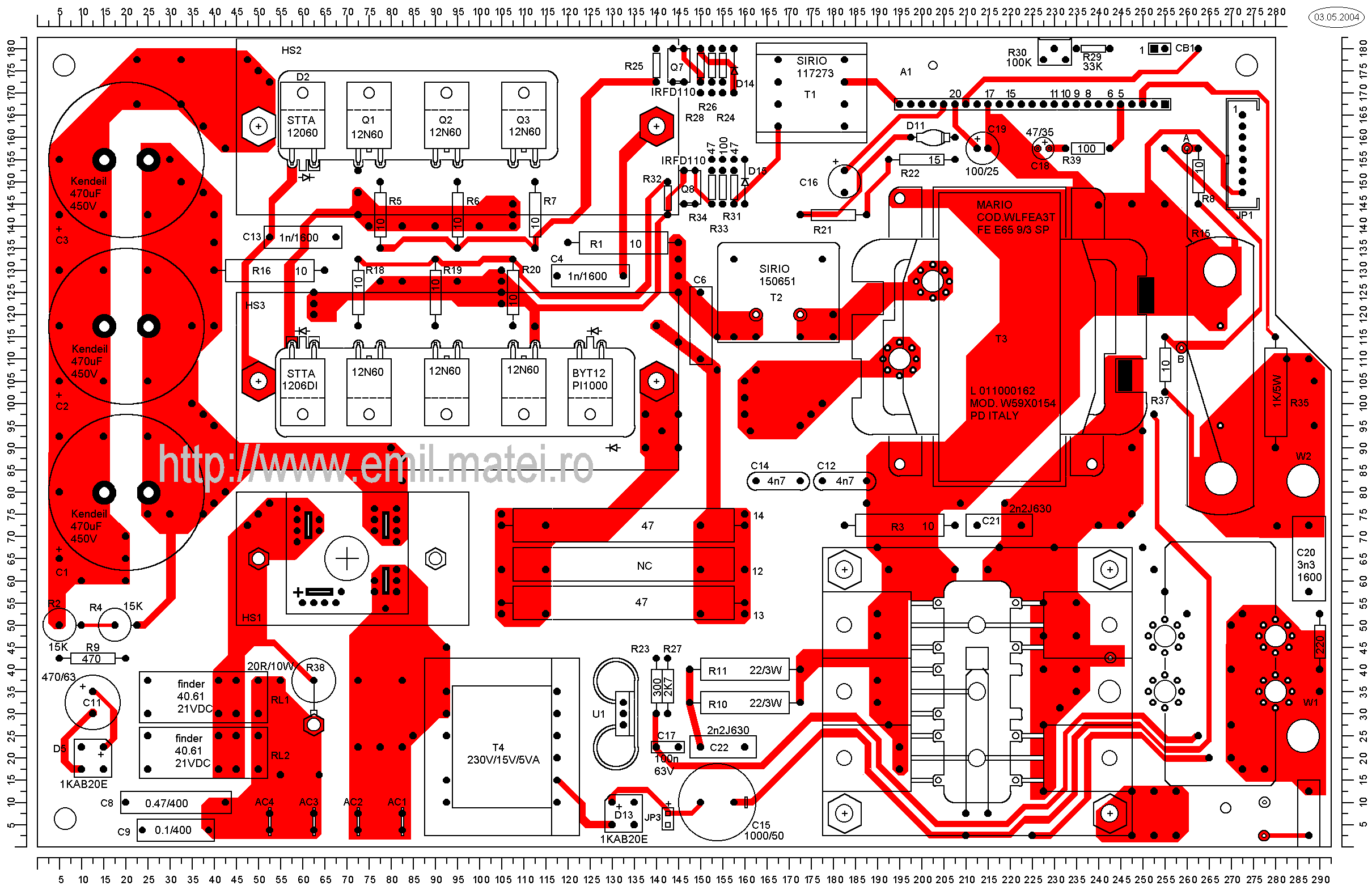

Layer 1:
Layer 2:

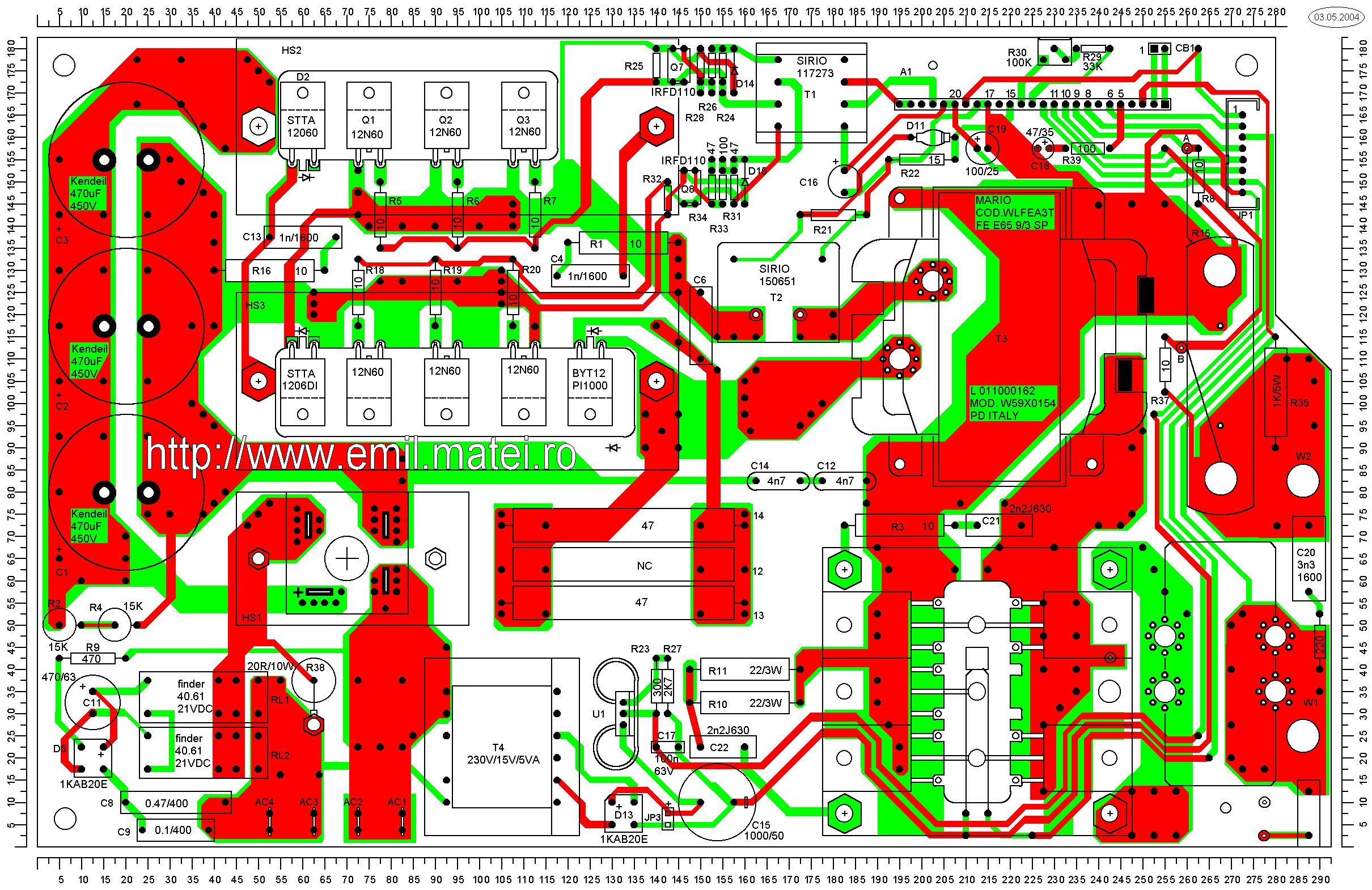

Routing layers:
Placuta comenzi de la panou.

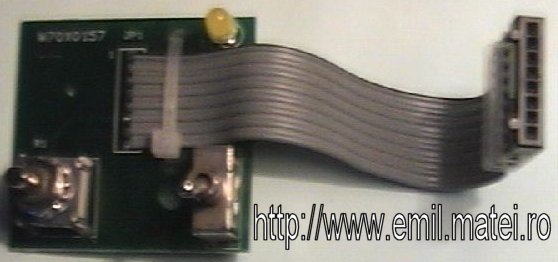

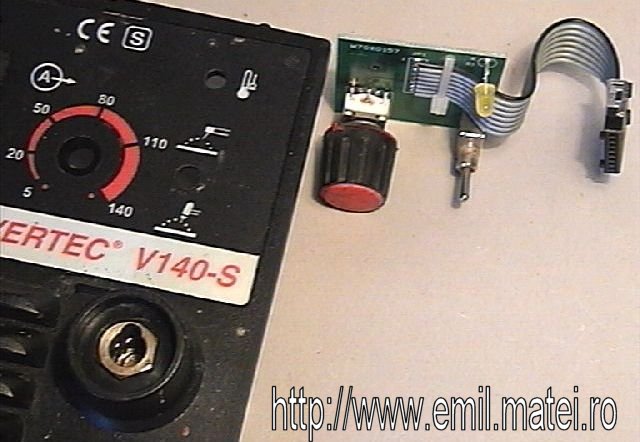

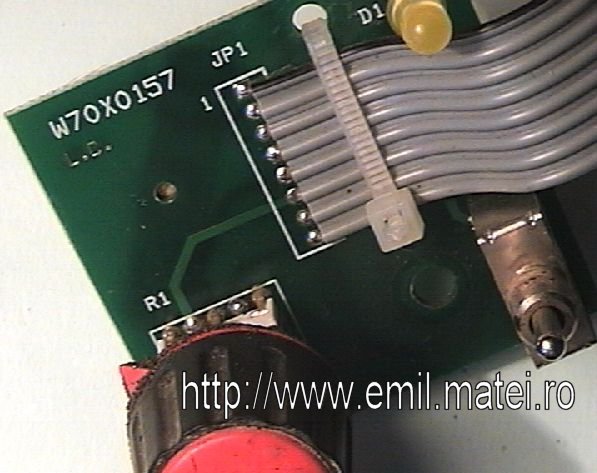

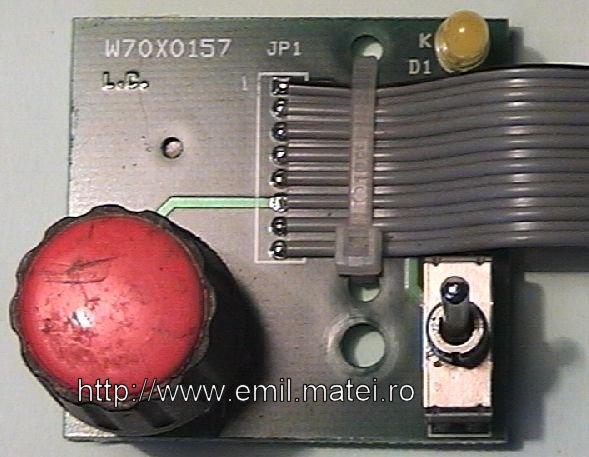

Foto PCB comenzi de la panou - W70X0157:
Control Panel PCB - W70X0157:
Control Panel PCB - W70X0157:
Scheme complete PCB comenzi de la panou - W70X0157:

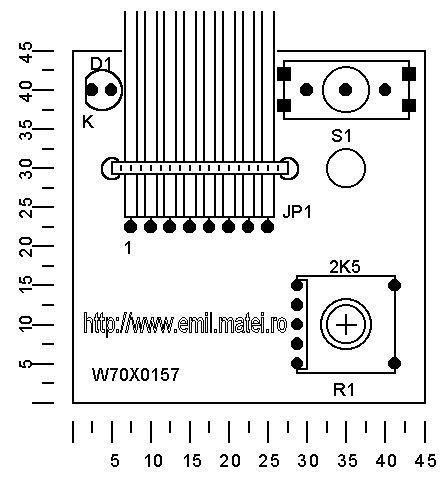

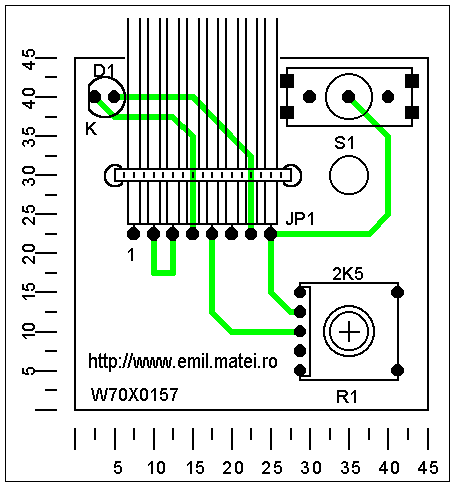

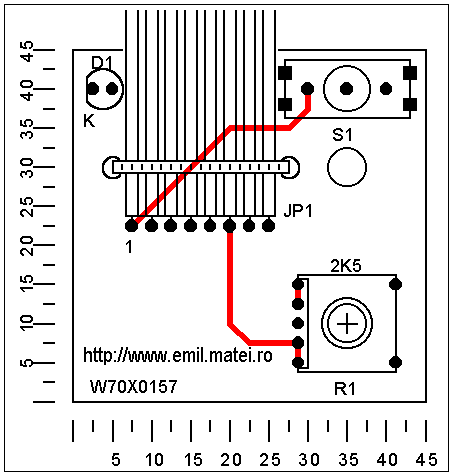

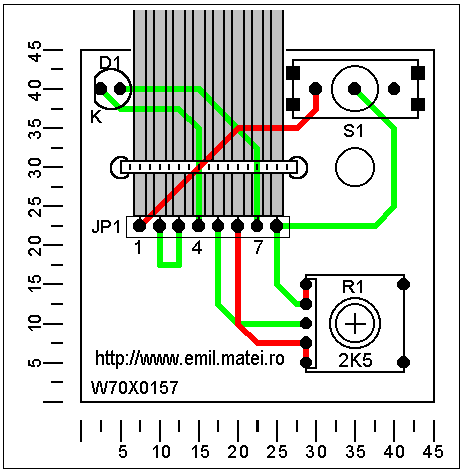

Desen PCB layout:
Desen PCB layer1:
Desen PCB layer2:
Desen PCB:

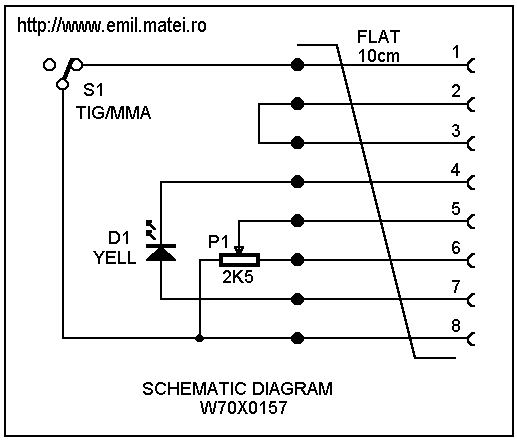

Schema electrica:
Desen PCB layer1:
Desen PCB layer2:
Desen PCB:
Schema electrica:
PCB Control.

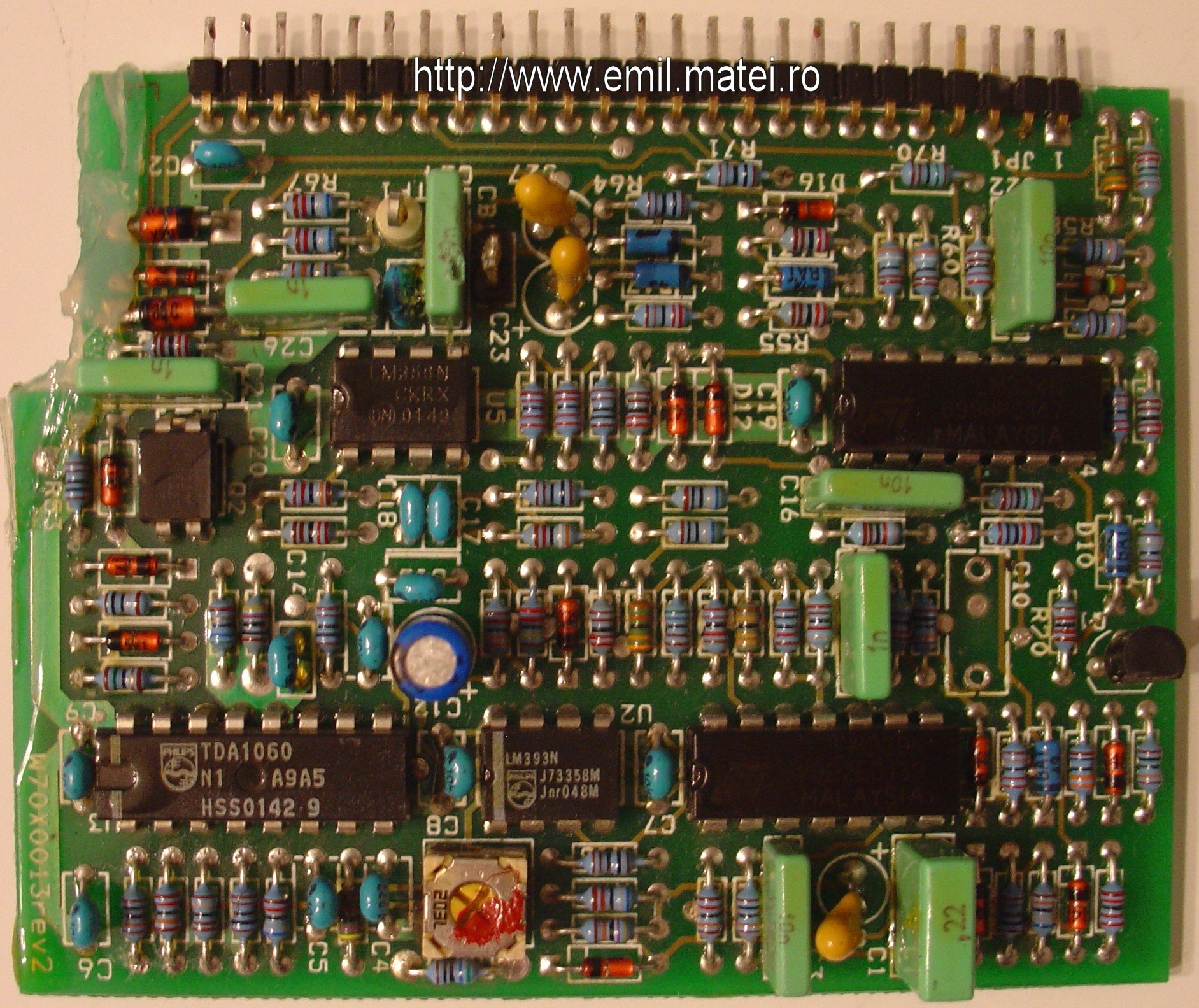

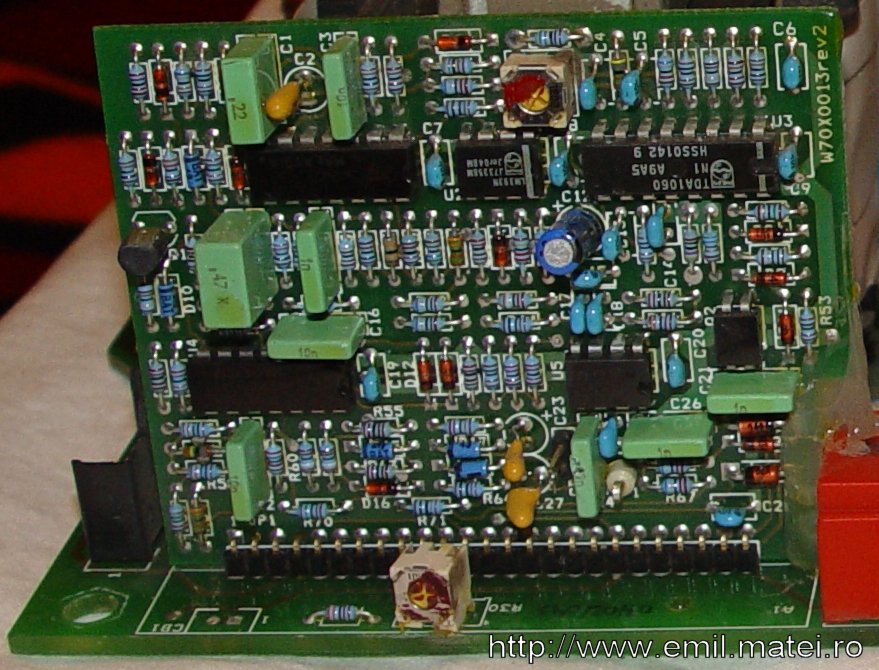

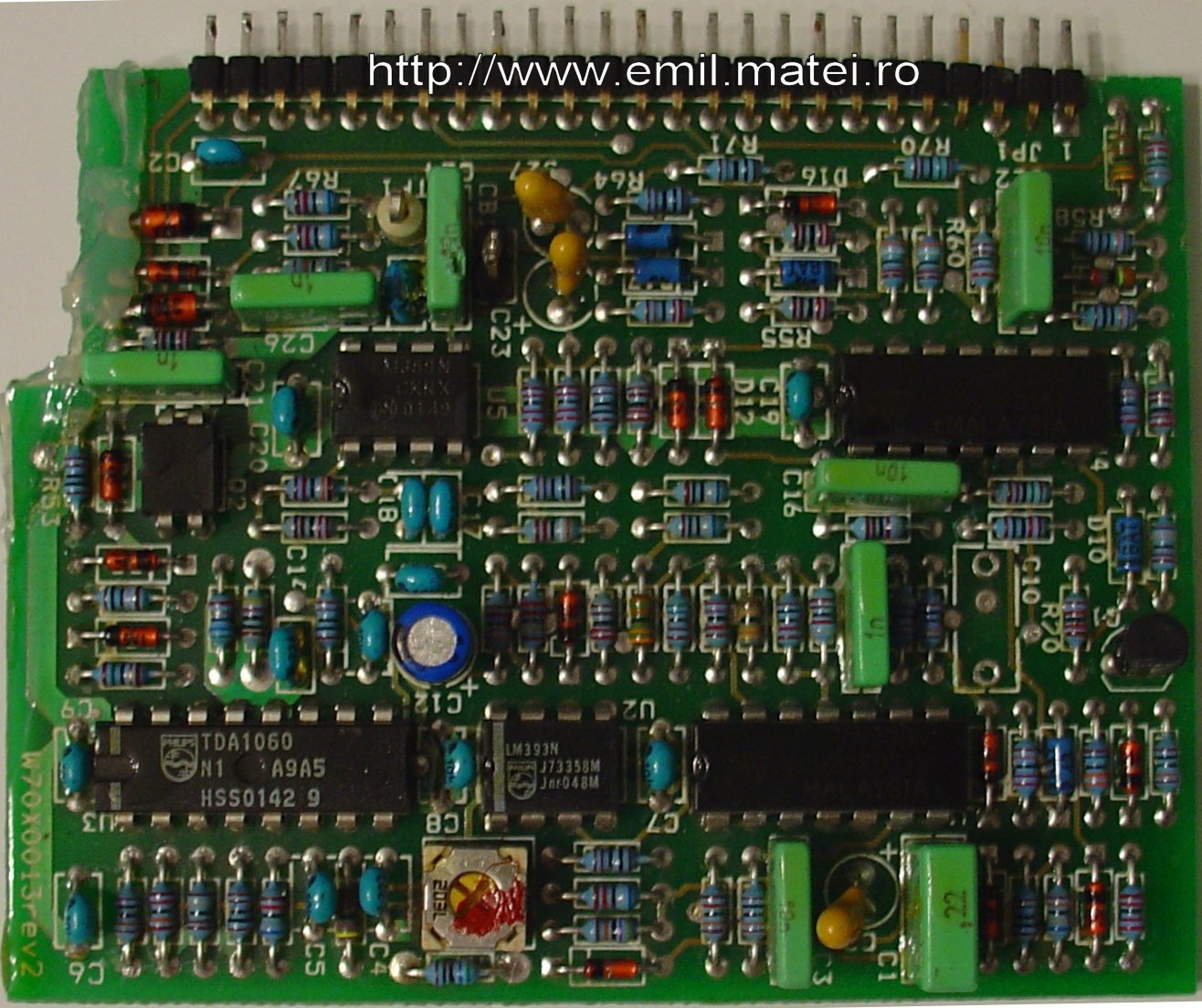

Foto PCB Control Lincoln Invertec V140-S:
Releveu

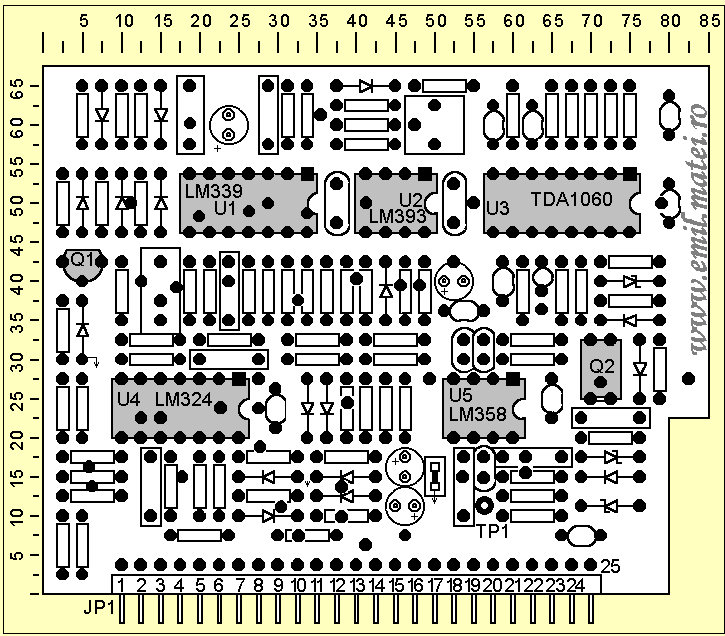

Amplasare componente PCB control
PCB Layout

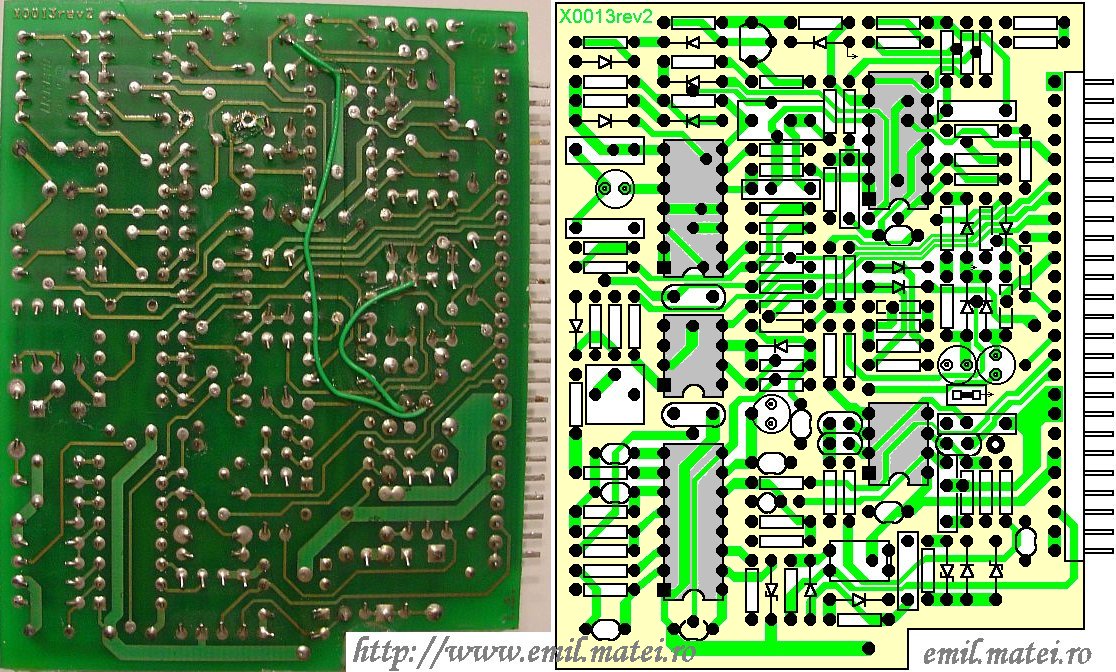

Fata cu lipituri:
Soldering side:

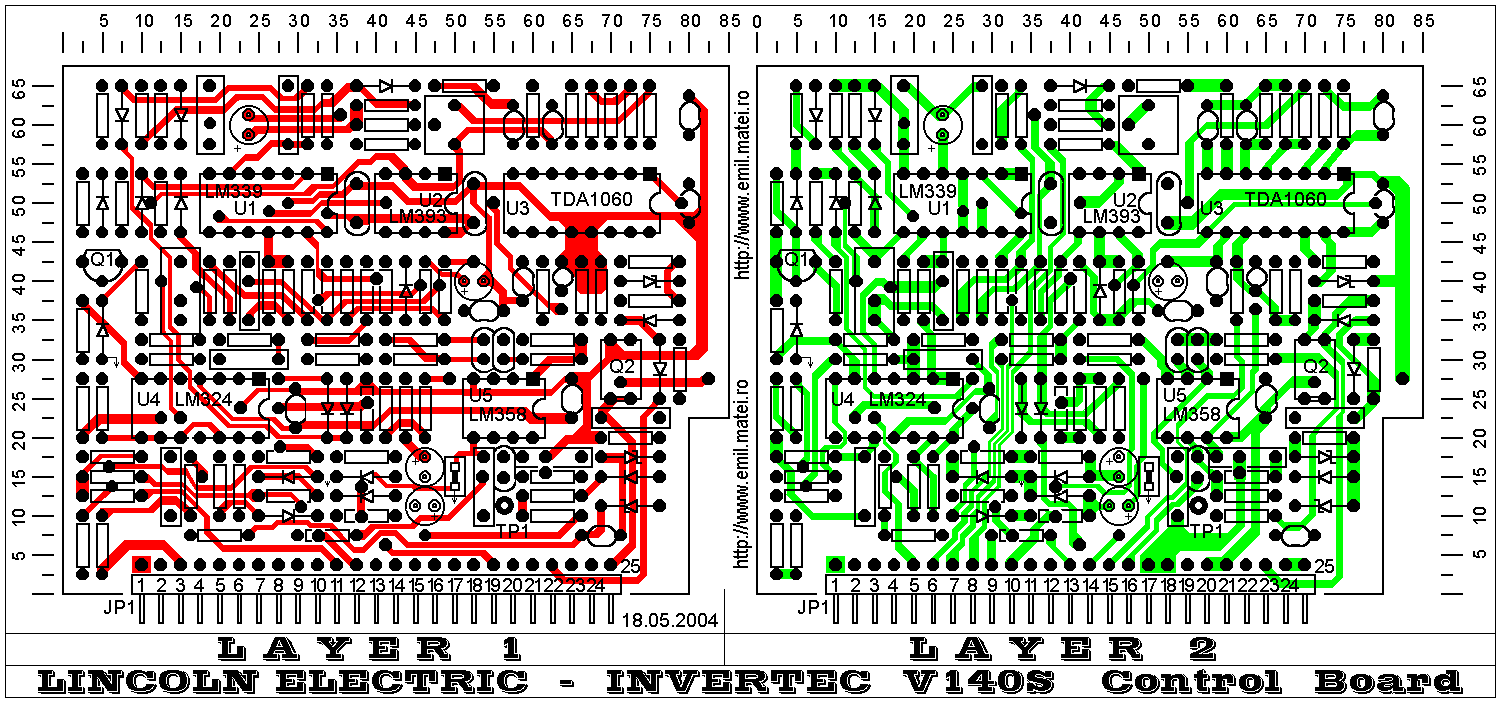

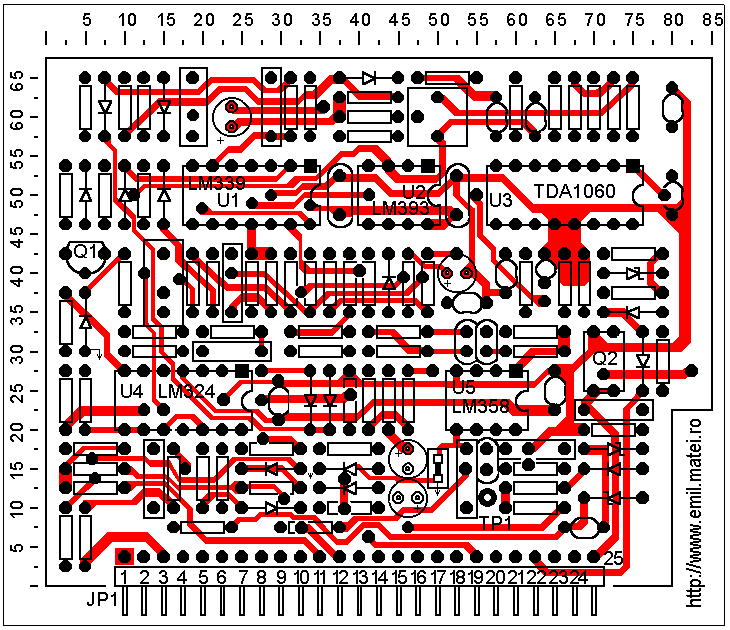

Layer 1:
Layer 2:

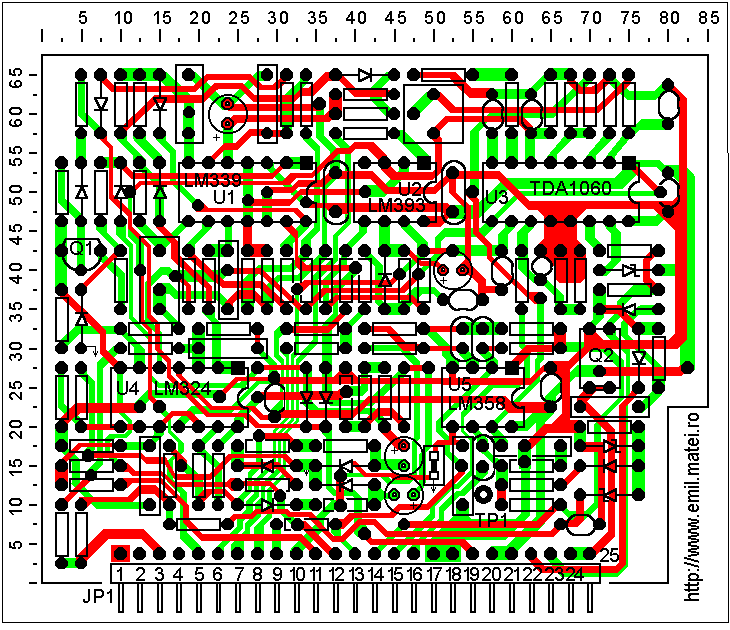

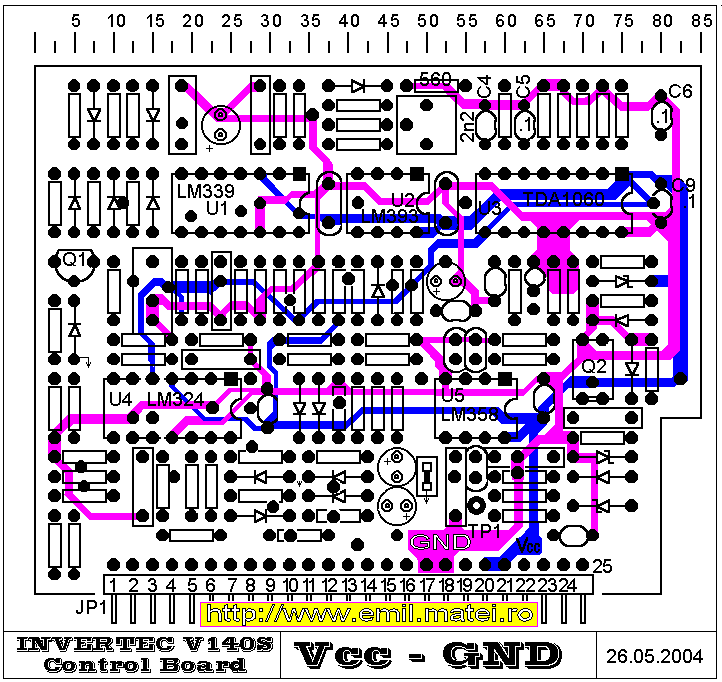

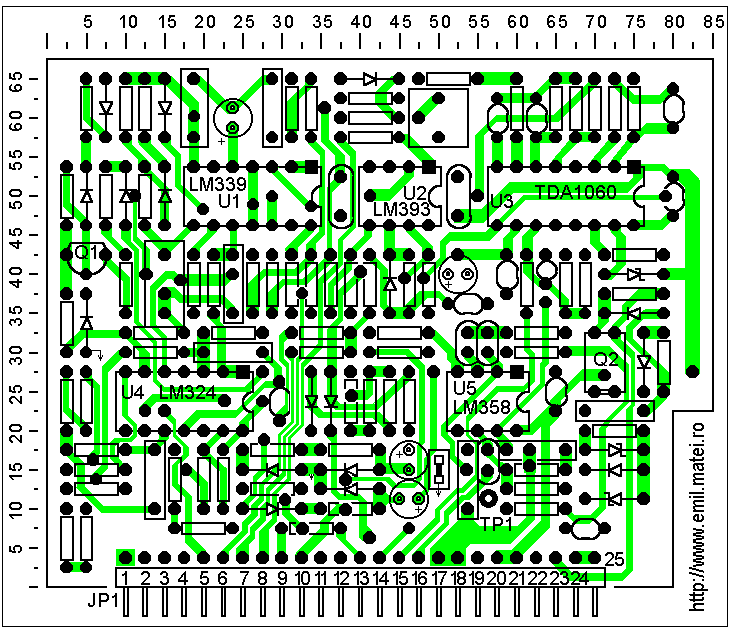

Routing Layers:

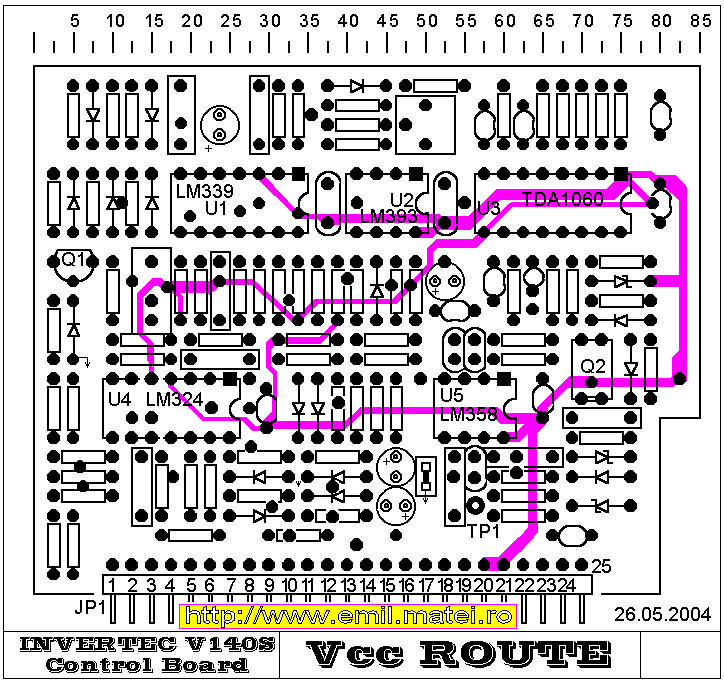

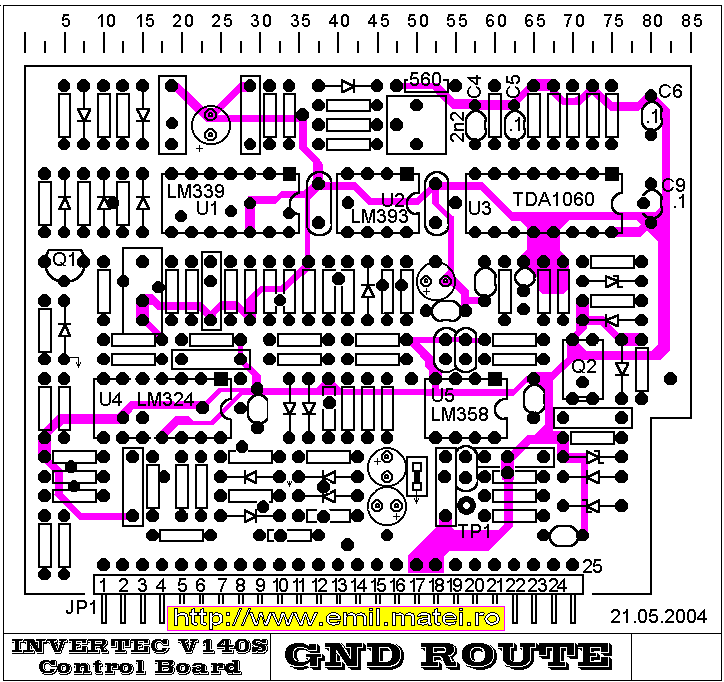

Utile pentru depanare:
Useful for repairs:
Releveu
Amplasare componente PCB control
PCB Layout
Fata cu lipituri:
Soldering side:
Layer 1:
Layer 2:
Routing Layers:
Utile pentru depanare:
Useful for repairs:
Lista componente PCB Control.
