Emil.Matei - Invertoare de sudare - Circuite de pornire

Invertoare de sudare - Circuite de pornire - Scheme practice
Welding inverters - Soft starters - Practical schematics

-01-

Circuit de pornire invertor de sudare - Invertor industrial 160A-
Schema electrica:
Soft Start Circuit Schematic

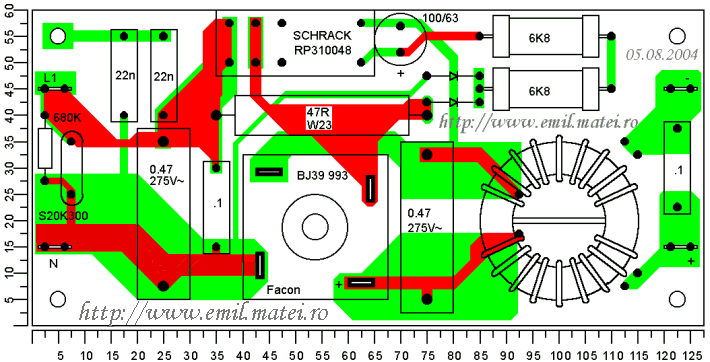

Circuitul imprimat (PCB):
Soft Start Circuit PCB

-02-

Circuit de pornire invertor de sudare - Invertor industrial 162A-
Schema electrica:

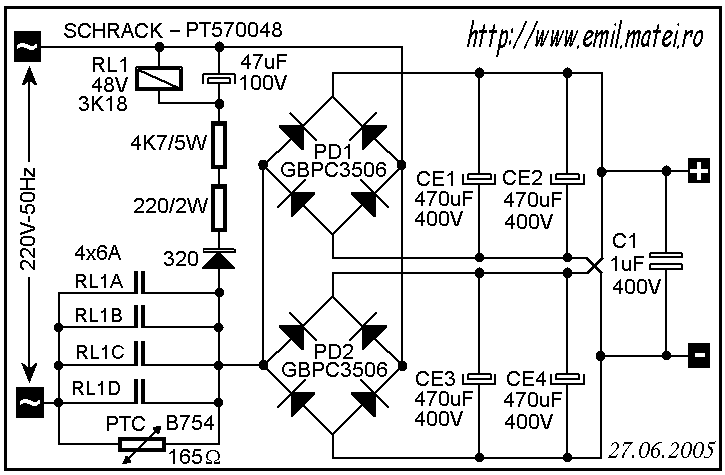

Soft Start Circuit Schematic

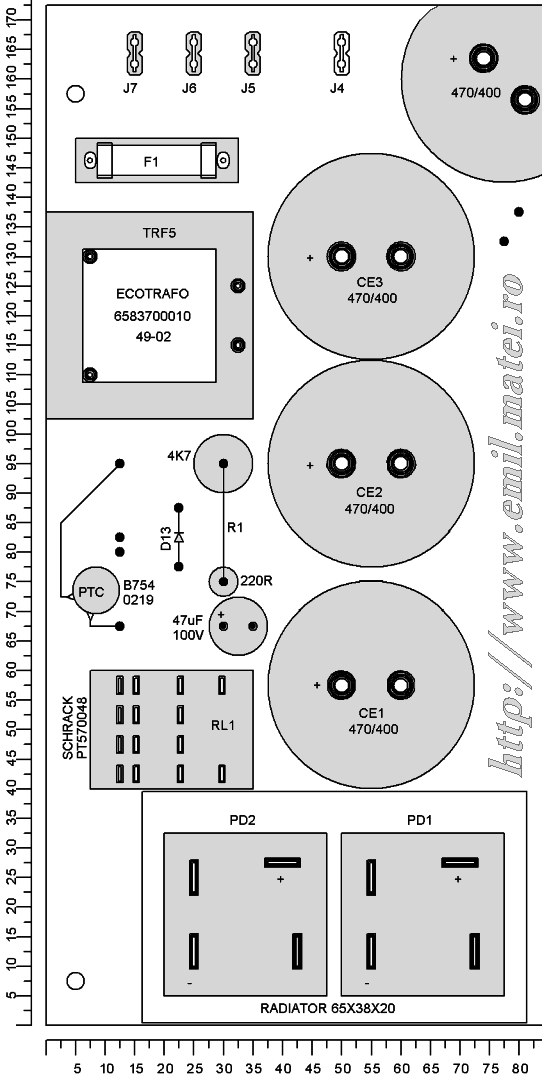

Circuitul imprimat (PCB):
Soft Start Circuit PCB 2

-03-

Circuit de pornire invertor de sudare - Invertor industrial 162A-
Schema electrica:
Soft Start Circuit Schematic

-04-

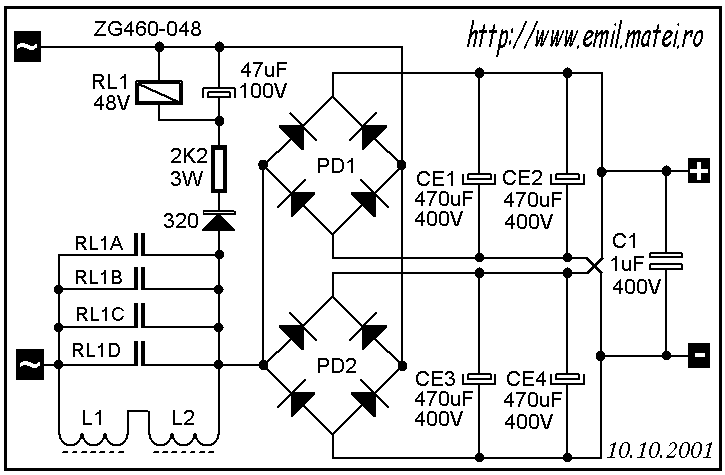

Circuit de pornire invertor de sudare - Invertor industrial 150A-
Schema electrica:
Soft Start Circuit Schematic

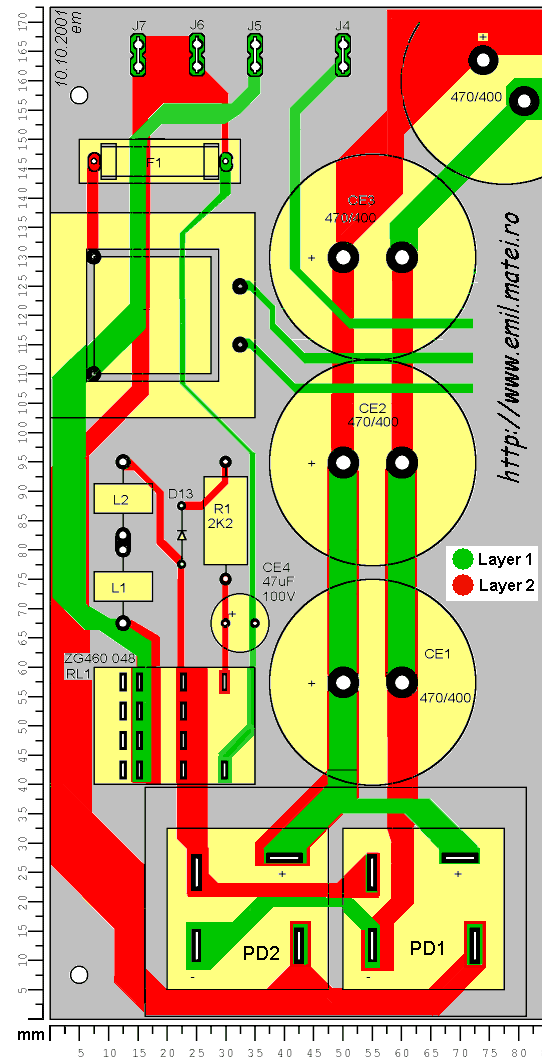

Circuitul imprimat (PCB):
Soft Start Circuit PCB

-05-

Circuit de pornire invertor de sudare - Invertor industrial 180A-
Schema electrica:

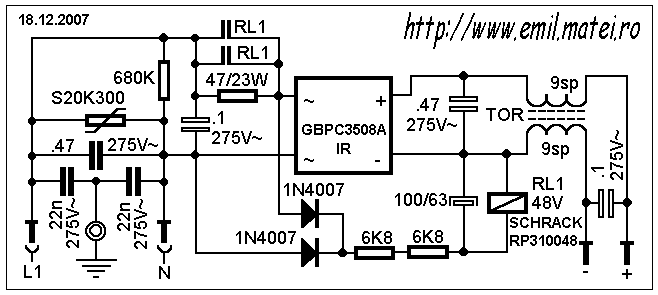

Soft Start Circuit Schematic

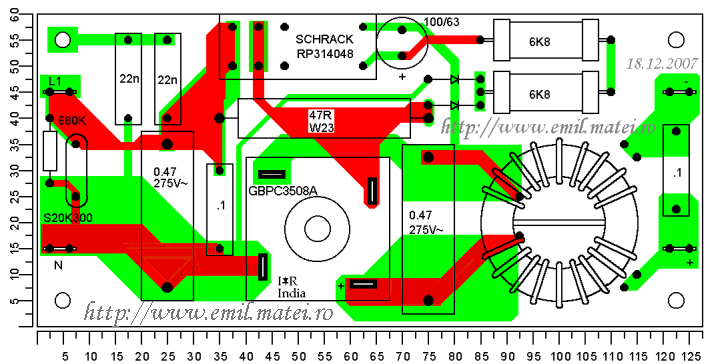

Circuitul imprimat (PCB):
Soft Start Circuit PCB 5

-06-

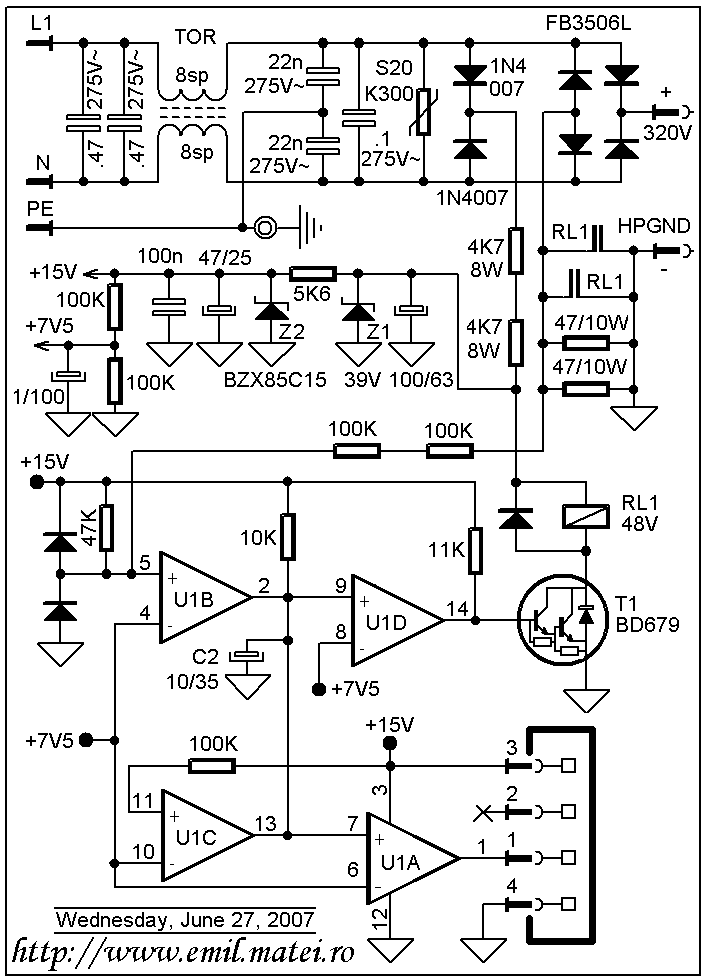

Circuit de pornire invertor de sudare - Invertor industrial 190A-
Schema electrica:
Soft Start Circuit Schematic

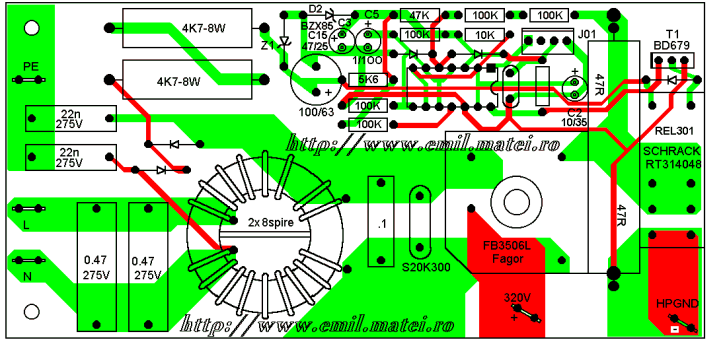

Circuitul imprimat (PCB):
Soft Start Circuit PCB

-07-

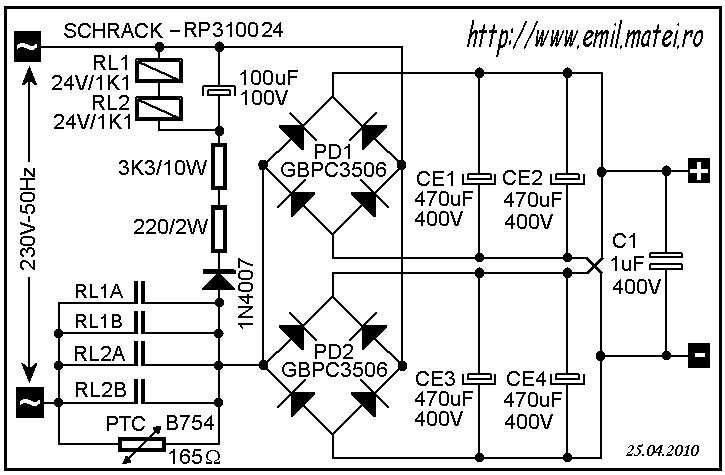

Circuit de pornire invertor de sudare - Invertor profesional 300A-
Schema electrica:
Soft Start Circuit Schematic

-08-

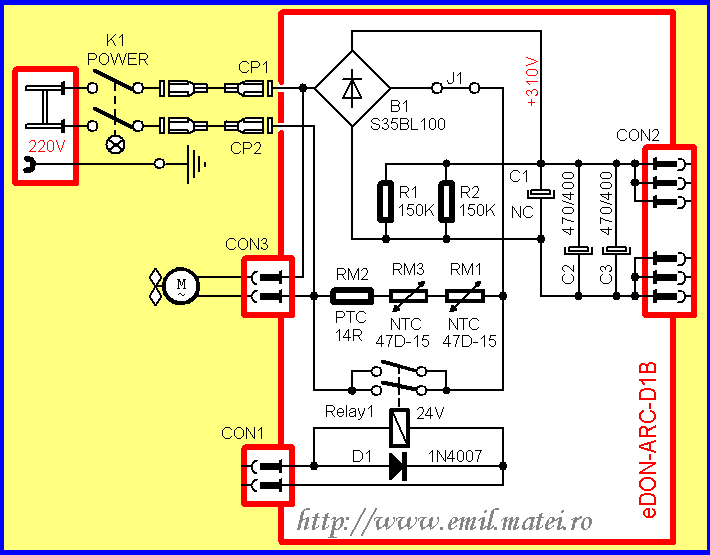

Circuit de pornire invertor de sudare - EDON MMA200-
Schema electrica:
Soft Start Circuit Schematic

Circuitul imprimat (PCB):
Soft Start Circuit PCB

-09-

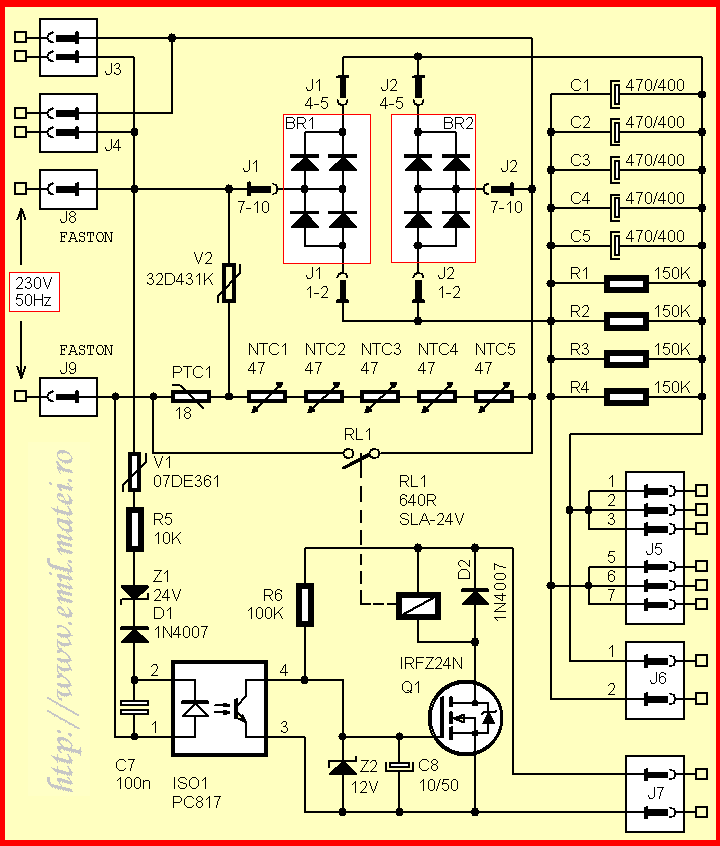

Circuit de pornire invertor de sudare - JASIC ARC200-
Schema electrica:
Soft Start Circuit Schematic

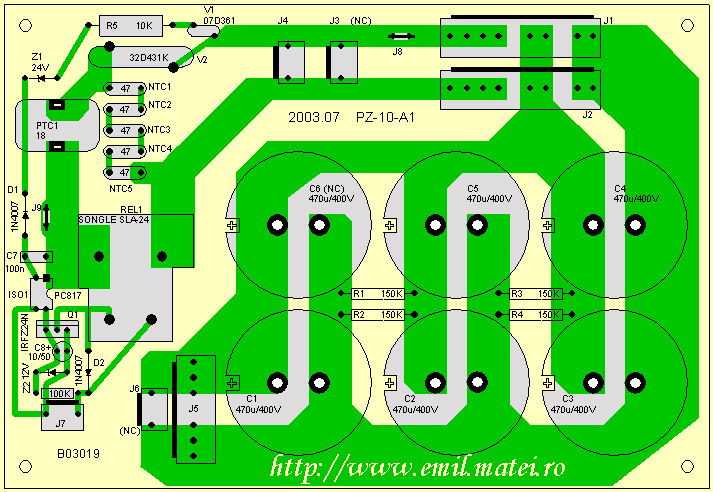

Circuitul imprimat (PCB):
Soft Start Circuit PCB
